Westrock Racing Machines 32nd 3D Chassis Kit


Westrock Racing Machines 32nd 3D Chassis Kit

Design includes removable panel for Scalextric or 3rd Party DPR Decoders

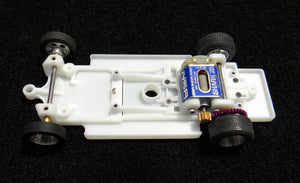

Images show built chassis: There is no hardware or motor included, shown for reference only!!

New from WestRock Racing Machines is this 32nd scale 3D printed slot car chassis.

Not just a chassis but it also comes with a motor pod.

It features a double pod system that allows the rear axle to motor distance to be easily adjusted for use of different diameter gears.

The motor pod can also be adjusted to allow for any wheelbase between 85mm to 88.5mm, this makes it a great chassis for saloon cars.

Suitable wheelbase for a Camaro, Mustang, Challenger, Cougar up to the XB-XC Falcon.

This chassis is designed to also accept a Slot-it side winder motor pods and the Scalextric DPR digital system.

Front axle height can be adjusted with 4/40 (NSR size) set screws.

Rear axle bushes or bearings fit in the 3/16 holes.

Plenty of areas to place lead if required for increased handling on wooden tracks.

Chassis has 3 body mounting points to keep the body level.

Will accept major brand RTR type guides, NSR, Slot-it, Thunderslot, Scale Auto etc.

Guide pivot to front axle centre is 12mm.

Rear portion and side ‘pans’ can be trimmed if needed, depending on the build.

Optional parts are a magnet for plastic track racing and a 1mm lift kit if wanting to drop the rear of the chassis.
